Effluent Treatment Plants

We Design, Manufacture, Supply, Erection and Commissioning Effluent Treatment Plant (ETP) on Turnkey basis for various types and natures of wasteWaters, effluents which combines advanced physico-chemical treatment processes with tertiary polishing system for the removal of organic, inorganic, oil and grease, heavy metals & suspended solids.

Our methodology - We analyze the effluent samples for different effluent parameters as per nature and compositions, carry out the treatability studies by using different methods checking techno-commercial Feasibility and then designed treatment schemes, processes accordingly to suit the purpose and need.

Our ETP systems are very compact, tailor made designs, portable required very less foot-print to accommodate, energy efficient. The up-gradation, modification in the existing ETP system is possible to achieve desired limiting standard laid down by the Pollution Control Board (PCB).


The Principle

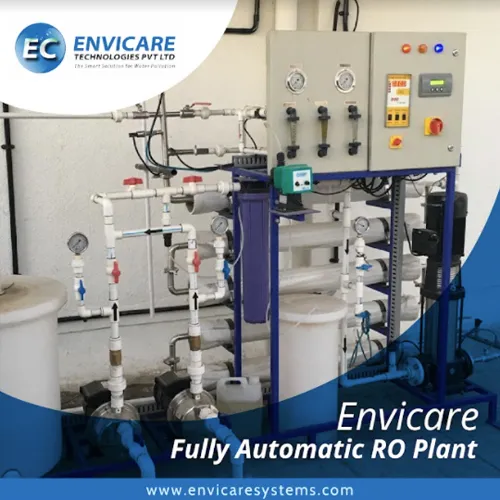

The principle of operation of ETP is Physico-Chemical treatment followed by Polishing Treatments like –Sand Filtration, Activated Charcoal treatment (Adsorption), Ozonisation (Chemical Oxidation), Ultra Filtration (UF), Reverse Osmosis (RO) and evaporation (If required).

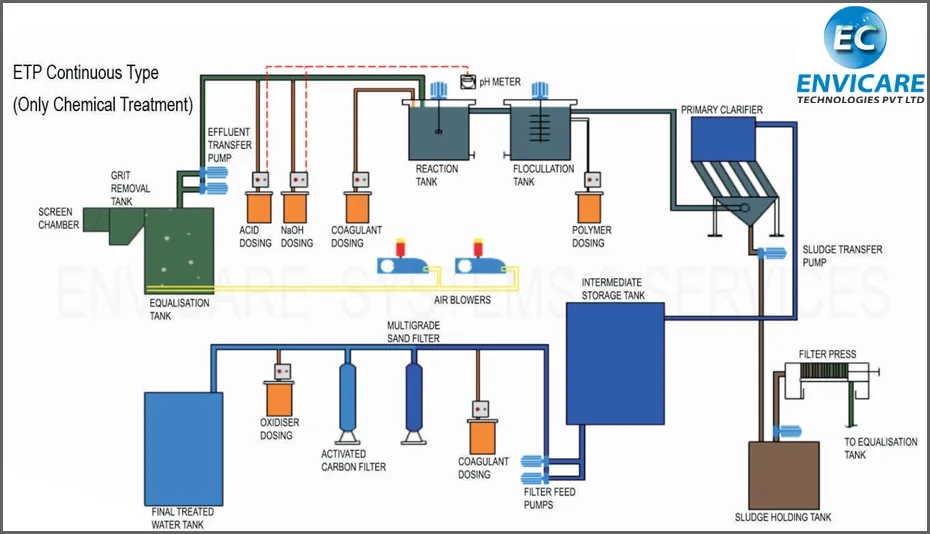

Typical flow sheet diagram : ( ETP Continuous Type )

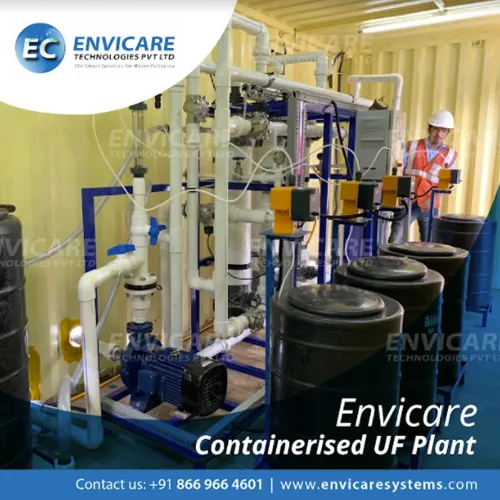

ETP Containerised Type

Capacity : 25 – 150 KLD, As per client Requirement
Tecnology : Physical / Chemical / Biological / UlFiltration
Features :

  • Semi-automatic Operation.
  • Required less space as compared to conventional design.
  • Very Compact and Great aesthetic.
  • Reduced Installation and commissioning time on site.
  • Plug and play operation.
  • Easy Dismantling and transportation.
  • Made to order product.
  • Civil Work – Collection Tank and Container Foundation.

Typical Industries : Chemical, Pharmaceuticals, Automobiles, etc.

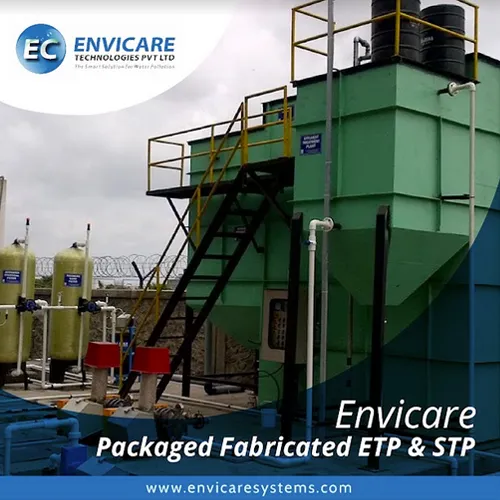

ETP - Continuous Type
Capacity : 15 to 1000 KLD, As per client Requirement
Treatment : Physical / Chemical / Filtration
Features :

  • Semi-automatic Operation.
  • MS process tanks with internal FRP Coating
  • Automatic chemical dosing with online pH monitoring.

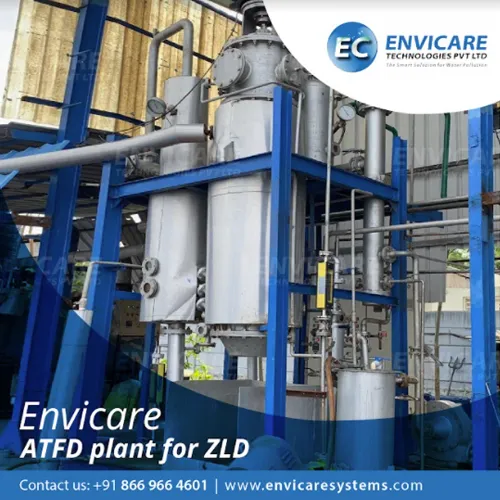

  • Advanced Filtration systems like UF, RO for Zero liquid discharge.
  • Advanced sludge handling system.
  • Compact design ,required low foot print
  • Better treated effluent quality as compare to conventional system.
  • Corrosion free UPVC piping & FRP / Epoxy Lined MS tanks.
  • Process Tanks – MS Fabricated / Civil (RCC)

Typical Industries : Automobile, Metal pre-treatment, Pharmaceuticals, Chemical, etc.


CETP Chemical, Biological Type
This type is called combined Effluent Treatment plant – either batch or continuous type. The chemically treated effluent will lead to biological treatment for the removal of organic matter and to control the TDS values.
Capacity : 25 to 1000 KLD, As per client Requirement. Treatment : Physical / Chemical / Biological / Filtration Features :

  • Semi-automatic Operation.
  • MS process tanks with internal FRP Coating
  • Automatic chemical dosing with online pH monitoring.
  • Advanced Filtration systems like UF, RO for Zero liquid discharge.
  • Advanced sludge handling system.
  • Compact design ,required low foot print
  • Better treated effluent quality as compare to conventional system.
  • Corrosion free UPVC piping & FRP/Epoxy Lined MS tanks.
  • Process Tanks – MS Fabricated / Civil (RCC)

Typical Industries : Pharmaceuticals, Chemical, Paint, Textile, Sugar.

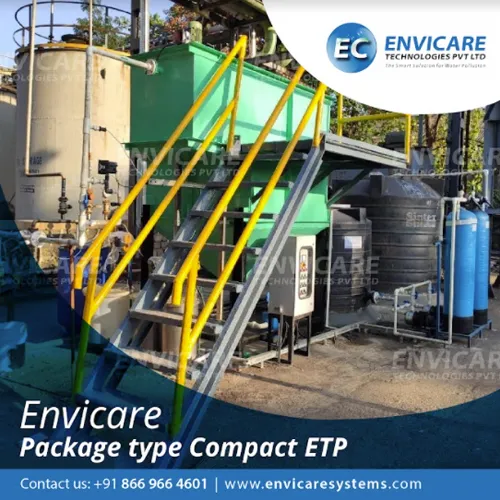

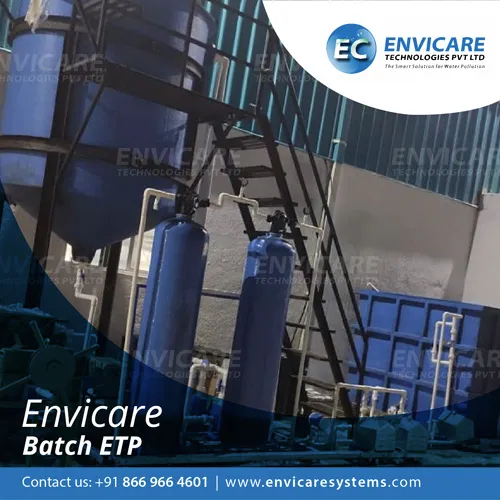

ETP - Batch Type (Compact Modular)
Capacity : 1.0 to 5 KLD
Tecnology : Physical / Chemical / Filtration
Features :

  • Very cost effective: Less initial Investment.
  • Types : Batch
  • Atomization : Manual, Semi-automatic and Fully-automatic.
  • Compact and proven design: Required very Low foot print.
  • Quality Components and Mounting items: Special sludge pump and total corrosion free UPVC piping & FRP/Epoxy Lined MS tanks.
  • Water Recycle: Recycling of treated is possible with advanced treatment methodology like UF and RO.
  • Operation and maintenance: Very silent in operation and any unskilled person can operate it, after proper training.

Typical Industries : Metal pre-treatment, Chemical, etc.


Questionnairs for designing proper solution in Effluent Treatment (ETP):

SR

Description
Your Comments
1
Name of the Party with detailed Office / Factory address with concern person name and contact nos ?
2
Site address in detail where this plant is going to Install / Operate ?

3
Are you end user of this project ? ( If not, please send us your details by filling the channel partner form, we shall review and come back to you)

4
What is the basic purpose of installing the system - Govt regulation / Strong need for recycling / To get PCB consent / Caring environment

5
Whats your manufacturing activity / process (Pls attach flowsheet diagram showing waste water generating stations)

6
Effluent Composition (i.e. what will be the specific contents of Effluent)? You may attach the list

7
Approx Total quantity of Effluent generated on daily basis?

8
New project OR Modifications / Upgradation in existing system (Please provide details about existing system as - Pictures, Capacity, BOQ, etc.

9
Please attach detailed effluent analysis report comprises of pH, TDS, TSS, COD, BOD, O&G, Cl, SO4, etc. ?

10

Output treated water quality expected - In terms of above mentioned parameters?


11

Have you carried out any treatability studies for effluent? If so please attach the report herewith.


12

Space availability - Allocated area in terms of L X W X H in Meter?


13

Types of Sytem : Civil / Containerised / MS-Package ?


14

Output Treated Water Quality in terms of TSS & BOD (Or attach specific requirement)


15

Final usage of treated Water - Gardening / Toilet Flushing ?


16

Do you have your own civil construction contractor / team ?


17

When you are expecting to start this project, date ?


18

How do you came to know about Envicare? ( Any specific reference)



Above data is compulsory to understand your requirement and to proceed further.

We are Manufacturer and Supplier and majorly we serve our products for customers in Maharashtra, Uttar Pradesh, Lukhnow, Agra, Banaras, Varanasi, Allahabad, Bihar- Patana, West Bnegal - Kolkata, Kanpur.
