Bag Filtration Systems

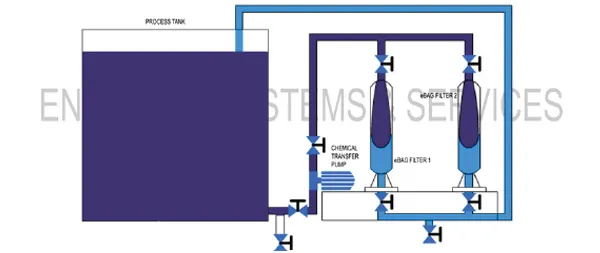

The raw water or waste water to be filtered will be pumped through the pressure vessel of Bag filter which will be consisting of filtration element ( known as Bag - PP ) of micron rating from 5u to 50u and in sizes of 5 lit and 10 lit water holding capacity. The clear filtered liquid flows continuously and can be recycled back to process or further treatment. Once the bag gets chocked with suspended solids that will generate the back-pressure and this is the right time to remove the suspended solids from bag and reuse ( depend on type of sludge ) it for specific period.


Model Std Size Flow rate MOC Liquid Holding Capacity
ETPL –BFS-32 7” x 32“ 20 – 25 m3/hr UPVC 10 Lit
ETPL –BFS-16 7” x 16” 10-15 m3/hr UPVC 5 Lit

Other parts of the system

  1. Suitable Pump ( Depend on Liquid to be handle ) - 1 no
  2. MSEP – Skid - 1 no
  3. Internal Piping, Valve and Pressure gauge - 1 set

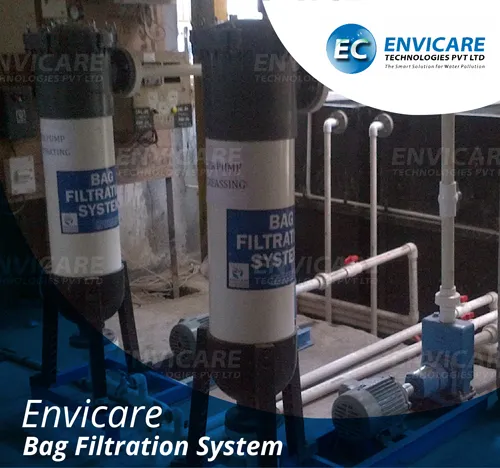

bag-filtration

Questionnaires for Bag Filtration Systems

SR
 #
Description Your Comments
1 Name of the Party with detailed Official address and contact nos.
2 Site address in detail where this plant is going to Install/ Operate
3 Source of Sludge – ETP/STP/ Process/Any other?
4 Qty of total Liquid to be handled? in Lit/day
5 Total Solid Concentration (mg/Lit) in Liquid or TSS value
6 Qty Of Sludge (solid part) generated? In Kg / day
7 Sludge Characteristics- pH , Viscosity, Temp etc.
8 Space availability in (LXBXH) - Meter

Above data is compulsory to understand your requirement and to proceed further.

We are solution provider company in water and waste water treatment and majorly we serve our products for customers in National : Maharashtra, Delhi, Chennai, Kolkata, Bangalore, Karnataka, Madhya Pradesh, Gujarat, West Bengal, Assam, Odisha, etc International : Dubai, Oman, Saudi, Ajman , Mauritius, Madagascar, Bangladesh, Ethiopia, Malaysia, etc.
