Water Treatment Plants

Envicare's - WTP & Water Softening Plants:
  • We are Manufacturer, Supplier, Exporter of Water Treatment Plants (WTP) Our setup is situated in Pune, Maharashtra, India.

    Industrial Automatic / Manual Water Softeners. Water is considered 'Hard' when it has excessive levels of Calcium and Magnesium dissolved in it. The Borewell water and well water are the main sources of hard water. Envicare's eSOFT Series - Water Softening Plants are designed to produce soft Water to suit for various applications. The soft water is of consistency quality with low residual hardness throughout the service cycle. The high synthetic resin is used to exchange Sodium ion with hardness forming Calcium and Magnesium ions.
    After producing desired output, the resin is regenerated (Regeneration Process) with simple salt, Sodium Chloride (NaCl) solution after which unit will be again ready to deliver next batch. These units are easy to operate, no any skilled manpower requirement and almost maintenance free. The regeneration process can be placed Manual and Automatic.
    These models are available to produce various capacities from 0.5 m3/hr to 25.0 m3/hr.( Please check the list as attached below). The difference between these models is in the capacity of the resin used for each model.
Water Softener Types:
• Resin based Softeners :
These most popular water softeners are utilising the Sodium based Resin as the main softening agent to remove the hardness from water. Available in Manual and Automatic regeneration mode. These systems works well at Hardness between 300 to 600 ppm. Above this limit it won't work efficiently.
• Membrane based Softeners :
The RO ( Reverse Osmosis) membranes are used to remove the hardness from water. The removal of other unwanted minerals from water is the best aspects of these systems. It’s very good option when the Hardness of water is more 600 ppm

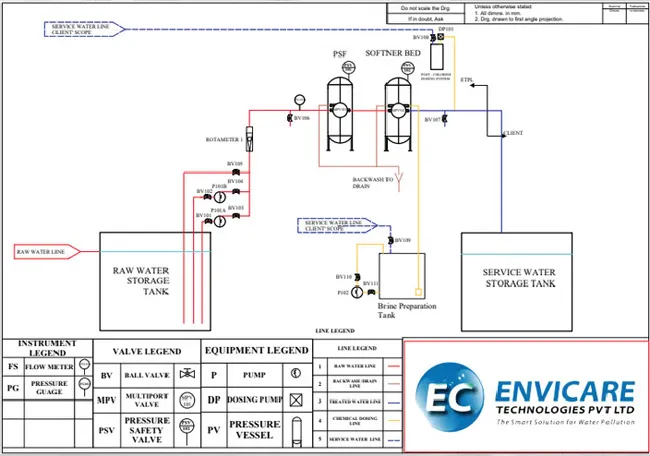

Typical Flowsheet Diagram of the System:
water-treatment-plants
Water Treatment Plants
Water Treatment Plants

Water Treatment Plants
Water Treatment Plants

Features

  • Anticorrosive Vessels - FRP/ MSEP- Long Life and less maintenance
  • Manual and Automatic regeneration- Options to suit your budget
  • User Friendly- Manual and Auto Regeneration-No need of any skilled manpower
  • Remote Monitoring Feature available - No need of any skilled manpower
  • Require Less space - As small as - 1M x 1M - No worry where to install
  • Low power consumption almost NIL - Not to worry about heavy light bills
  • Light weight - Easy to transport and shifting from one place to another

Advantages:

  • Health benefits like - Reduction in Hair Loss, Reduction in Soap and detergents
  • No stains on the cloths and utensils.
  • Reduction of scales in pipe and heating systems.
  • Geysers and heating elements life increases.
  • Low blow down for Boilers- Reduction in breakdown and maintenance cost
  • Low scaling in Cooling towers.
  • Great heat transfers - So reduction in electrical consumptions.

Applications:

  • Society's , Bungalow's and Housing complexes
  • Hotels and Restaurants
  • IT Companies
  • Solar Heating System - Feed Water
  • Boiler, Cooling Tower Make-Up.
  • Hospitals, Hotels, Laundries etc.
  • Food processing.
  • Chemical & textile mills.
  • Power plants.
  • Ice plant.
  • Dyeing processes
  • Pharmaceutical industries
SR No SELECT THE MODEL Resin
Volume
SIZE ( DIA x HEIGHT in MM ) Min. FLOWRATE ( M3/Hr ) MOC OBR* @
500 PPM HARDNESS ( LIT )
1 eSOFT - 15 15 200 x 450 0.50 FRP 1410
2 eSOFT - 30 25 200 x 800 0.80 FRP 2350
3 eSOFT - 50 50 250 x 1350 1.00 FRP 4700
4 eSOFT - 80 75 300 x 1200 1.20 FRP 7050
5 eSOFT - 100 100 325 x 1350 1.50 FRP 9400
6 eSOFT - 140 125 350 x 1625 2.50 FRP 11750
7 eSOFT - 180 175 400 x 1625 3.00 FRP 16450
8 eSOFT - 250 240 450 x 1625 3.50 FRP 22560
9 eSOFT - 300 290 525 x 1550 4.00 FRP 27260
10 eSOFT - 440 425 600 x 1800 6.00 FRP 39950
11 eSOFT - 710 690 750 x 1800 8.50 FRP/MSEP 64860
12 eSOFT --1330 1300 1050 x1 1800 18.00 FRP/MSRL 122200
13 eSOFT -2090 200 1200 x 1800 25.00 FRP/MSRL 188000

OBR* is Output Between One Regeneration in Lit. In simple language after this quantity of water passed through the softener, It shall require the regeneration process to deliver the next batch of same quantity.


Envicare - Water Treatment Plant - Model eWTP Flow Rate =  OBR - Lit Comments (IF any)
Description Type Qty
Raw Water Pump - CI Centrifugal, Kirloskar/ Equi 1 No
Pressure Sand Filter (PSF) Model: PSF Vessel - Tata Steel / Equi 1 Set
Activated Charcoal Filter (ACF) Model: ACF Vessel - Tata Steel / Equi 1 Set
Water Softener  Model: eSOFT Vessel - Tata Steel / Equi, Resin Thermax / Equi make 1 Set
Alum Dosing System  0-6 LPH Positive / Equi 1 Set
Hypo Dosing System  0-6 LPH Positive / Equi 1 Set
Online Rotameter as Flow Meter Aster/ Equi 1 No
UPVC Piping Astral / Equi 1 Set
Electrical Cablings Polycab / Equi 1 Set
Skid MS Powder Coated 1 No
Electrical Control Panel Envicare Optional
Filters Automatic Regeneration Auto Valves Optional
Online Digital Flow Meter Flowmeter with Batcher Optional




Above data is compulsory to understand your requirement and to proceed further.

We are solution provider company in water and waste water treatment and majorly we serve our products for customers in National : Maharashtra, Hyderabad, Goa, Indore, Delhi, Chennai, Kolkata, Bangalore, Karnataka, Madhya Pradesh, Gujarat, West Bengal, Assam, Odisha, Rajasthan, Jaipur, Ahmedabad, Punjab, Lucknow etc International : Dubai, Oman, Saudi, Ajman, Mauritius, Madagascar, Bangladesh, Ethiopia, Malaysia, etc.
